Substrate condition
Substrates should be structurally sound, clean, dry and free of dust, paint, oils, curing compounds or other materials that may impair bond performance.
Installation planning
Thin Brick Veneer Installation Planning
Sunbrick supplies the veneer; the project team and qualified installer are responsible for the wall assembly, substrate, setting materials, moisture management and applicable codes.
Installation documentation
Recommended Planning Requirements
These notes summarize the project conditions that should be reviewed before ordering or installing Sunbrick thin brick veneer. Final installation design remains the responsibility of the project team, installer and applicable local code authority.
Surface variation
Surface variation should not exceed 1/4 in. in 10 ft. Wood or steel stud framing systems should be limited to L/360 deflection.
WRB, flashing and drainage
Exterior applications over wood or steel stud framing should include two WRB layers, or one WRB layer with a drainage mat, plus corrosion-resistant flashing and drainage at required transitions.
Mortars and adhesives
Use ASTM C270 Type S mortar, polymer-modified mortar, ANSI A118.4 modified thin-set mortar or a manufacturer-approved masonry adhesive.
Bond and placement
Each unit should receive full mortar or adhesive coverage on the back and be pressed firmly into place to achieve complete contact.
Movement joints
Movement joints should extend through the veneer system, align with substrate joints, be spaced no more than 18 ft apart and enclose no more than 144 sq ft.
Substrate Use Recommended method
Concrete Interior / exterior Thick set or thin set
Concrete masonry unit (CMU) Interior / exterior Thick set or thin set
Clay brick Interior / exterior Thin set
Cement backer board Interior / exterior Thin set
Cement plaster / stucco Interior / exterior Thin set
Cast-in-place concrete Interior / exterior Thick set or thin set
Wood stud framing Exterior Thin set over cement backer board with WRB and flashing
Steel stud framing Exterior Thin set over cement backer board with WRB and flashing
Precast concrete panels Interior / exterior Prefabricated panel system
Modular panel system Interior / exterior Follow panel manufacturer instructions
System details

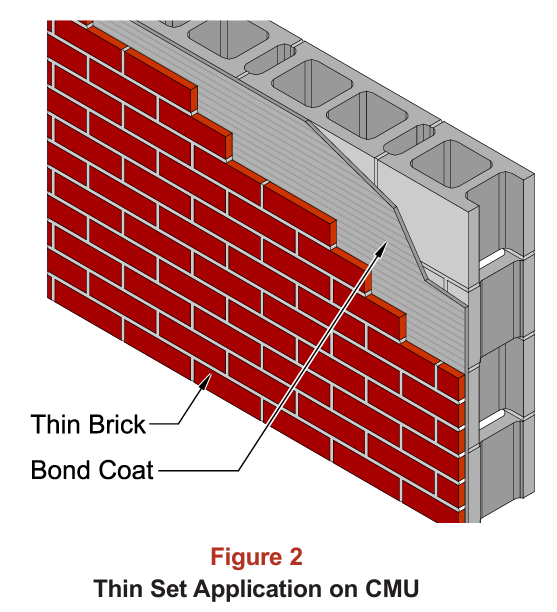

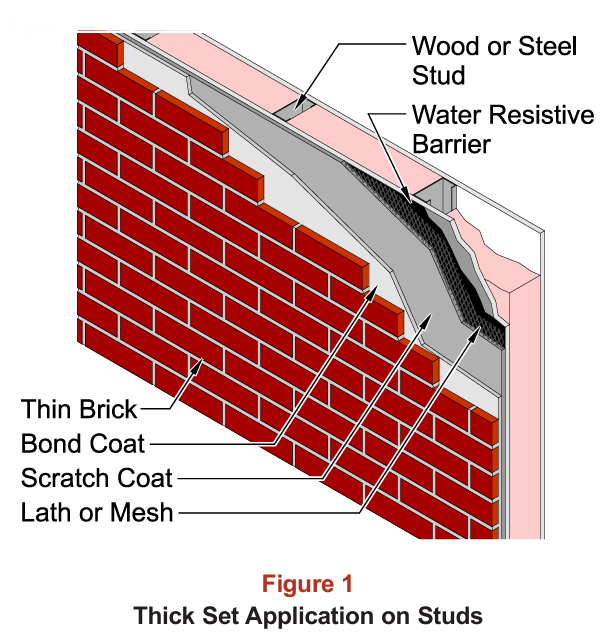

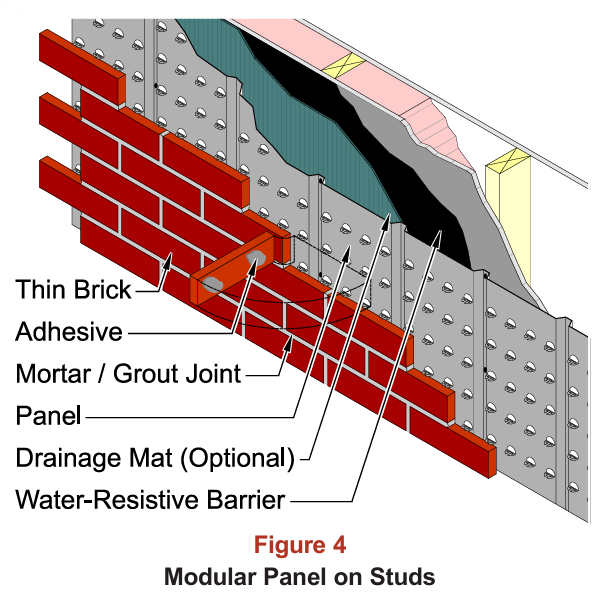

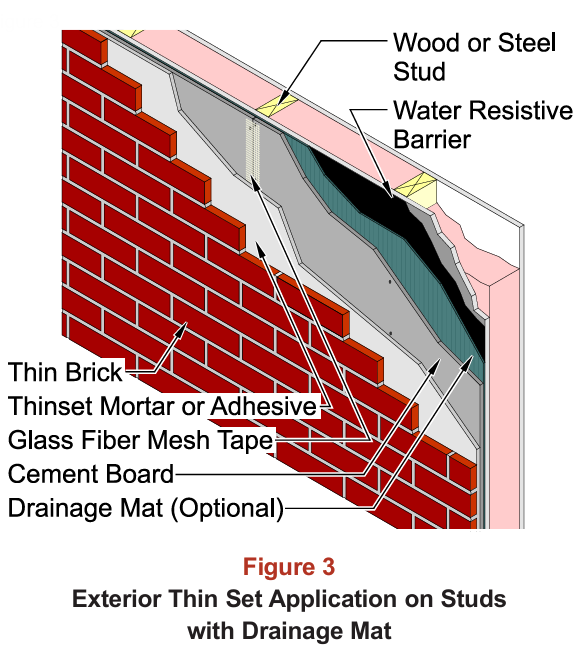

Typical Thin Brick Veneer Assemblies
These diagrams illustrate common Sunbrick thin brick veneer installation assemblies. Final design should comply with project specifications, local code requirements and manufacturer-approved materials.
General recommendations
- Do not install over frozen or water-saturated substrates.
- Avoid installation during heavy rain or adverse weather conditions.
- Protect the veneer from weather exposure during the first 24-48 hours after installation.
- Provide movement joints as required by the project design.
- Remove excess mortar before it hardens.
- Avoid acidic cleaners until mortar has fully cured.
- Use only breathable penetrating sealers after mortar has fully cured.
Technical documentation
Documentation notes for project review
Measure and add appropriate waste
Calculate net wall area, subtract major openings when appropriate and add material for cuts, layout changes and installer recommendations.
Confirm the complete wall assembly
The installer should verify substrate condition, bonding materials, joint treatment, movement accommodation, moisture management and exterior exposure.
Review exterior projects carefully
Exterior suitability depends on climate and assembly design. Freeze-thaw exposure should be reviewed against the current product data, wall assembly and project requirements.
Applications
Where Sunbrick thin brick veneer fits
Sunbrick America manufactures thin brick veneer and decorative engraved brick products for project teams that need a durable wall finish, manufacturer-direct pricing, wholesale conversations and clear product information before purchase.
Interior and exterior thin brick veneer walls
Residential remodels and custom homes
Commercial interiors, restaurants and retail spaces
Fireplaces, patios and architectural accents
Custom engraved brick, logo features and a decorative wall
Bulk supply for trade buyers and project teams
Before requesting pricing
Details that help us price your project, wholesale order or custom production
Project city and state
Estimated square footage or order type
Interior or exterior application
Commercial, residential or resale use
Requested delivery date and receiving conditions
Plans, photos or artwork when available
Why Sunbrick America
Manufacturer-direct advantages for trade teams
Factory-direct coordination with the manufacturer
Box, pallet and wholesale order options
Product data and SDS documentation for project review
Freight reviewed for destinations throughout all 50 states
Standard veneer and custom decorative capabilities
Questions buyers ask
Thin Brick Veneer FAQ
Does Sunbrick provide installation labor?
No. Sunbrick manufactures and supplies veneer. Use a qualified installer for the project.
What mortar or adhesive should be used?
The responsible installer or design professional should select compatible materials for the substrate, exposure and applicable code.
